E-LINE

E-BLOCK 2-Unit Solar Portable Restroom

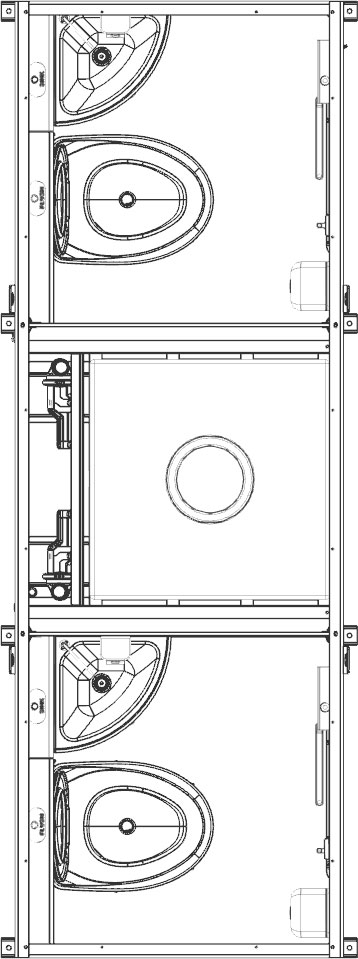

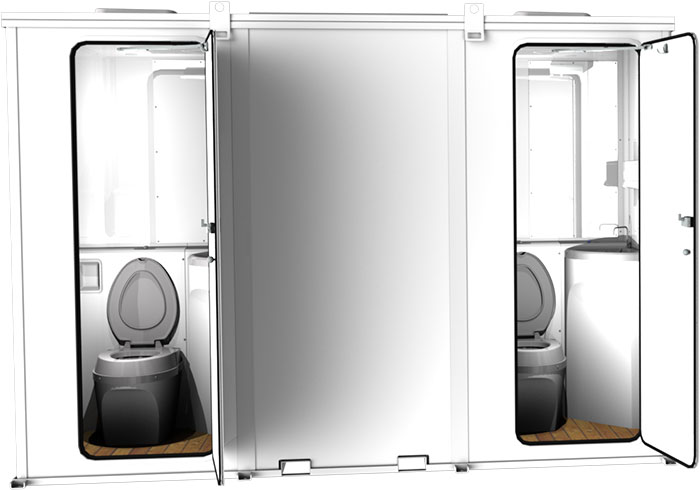

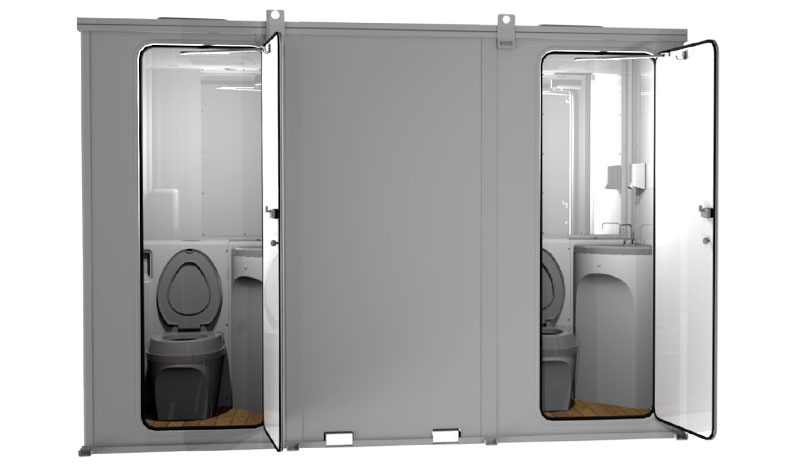

E-BLOCK is a 2-unit portable restroom with an appealing design and two independent entrances. The two restrooms are serviced by one technical room pleasantly located in between the two units. The portable station is overall good-looking, while easy to move and versatile when it comes to operations.

Scroll Down

PORTABLE RESTROOMS NEVER LOOKED SO GOOD

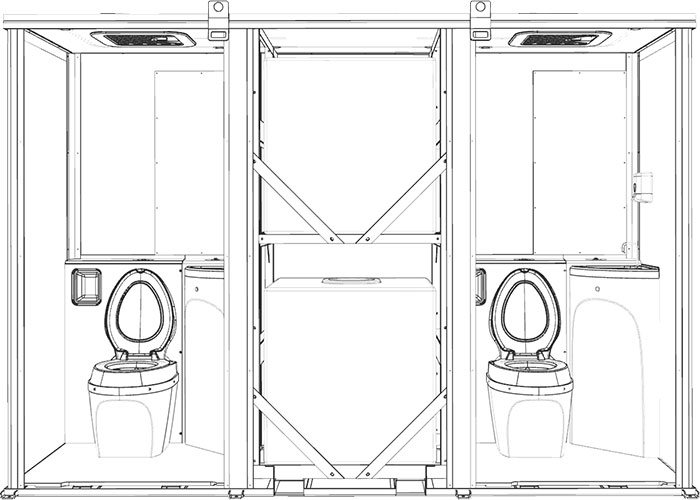

E-BLOCK doubles the VIP experience delivered by E-TOP. It has the same core electronic mechanism and all E-TOP accessories are included as a standard. Two portholes on the roof let in natural light and fresh air. The electronic control panels and the two tanks (fresh water and gray water) are not plain visible as they are hidden in the technical room in between the two toilet units.

A return tank, also located inside the technical compartment, collects the gray water, preventing it from flowing back into the restroom bowl, while the two tank pumps discharge water directly into the sewer system located at a higher level than the cabin, i.e. at a head of 1 m / 39.37'' approx.

EASY TO MOVE, VERSATILE, SELF-CONTAINED OR MAINS CONNECTED

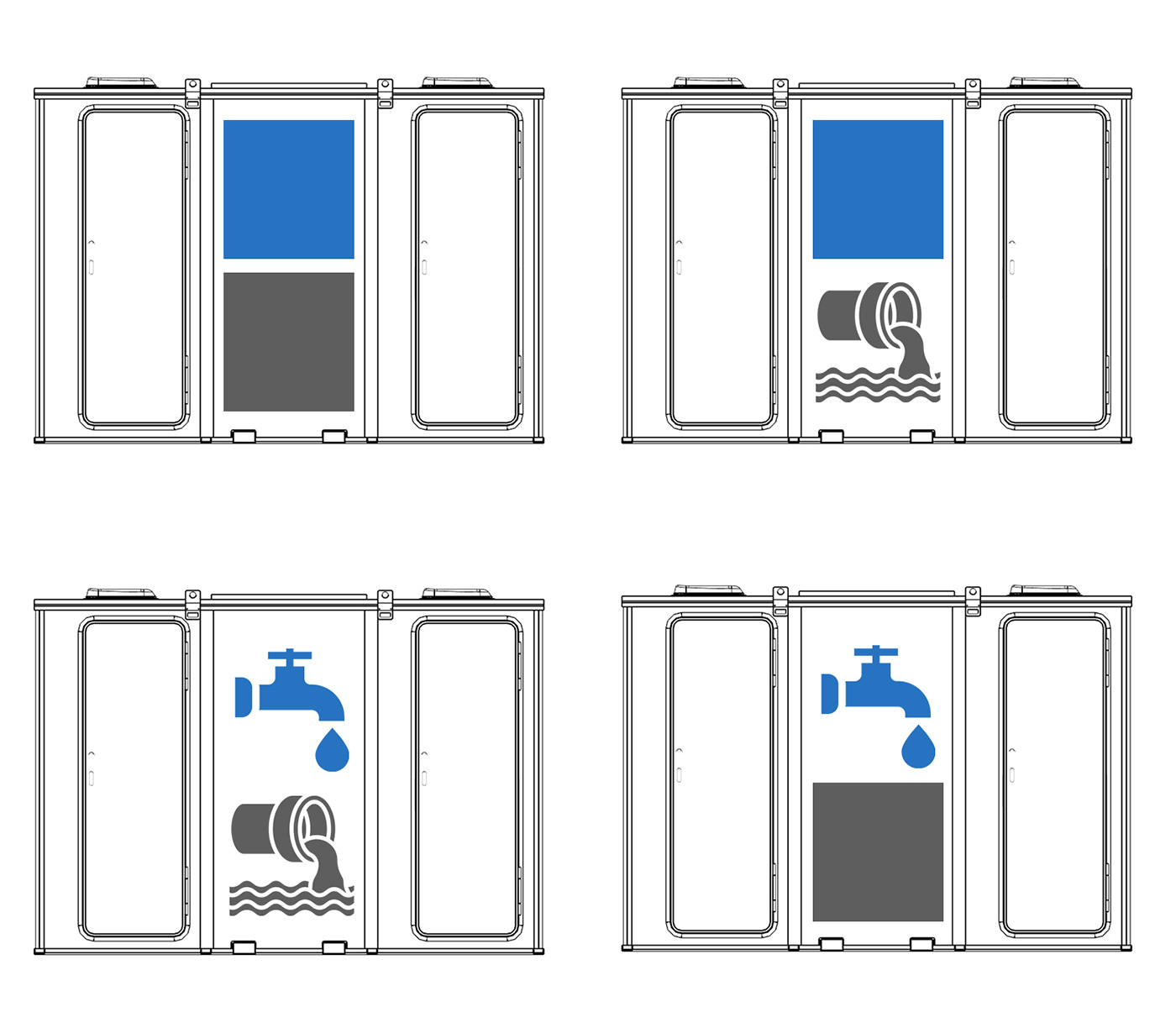

E-BLOCK is designed to allow easy lifting and moving with the use of a forklift or crane. For effortless transport it can be hooked to a dedicated trailer. Solar panel comes as a standard feature and is placed on the rooftop of the middle technical room. Just like all the E-LINE solutions, E-BLOCK can operate in four modes:

  • self-contained (using external fresh and gray water tanks)
  • mains connected (both water and sewage system)
  • self-contained using the gray water tank and connected to water supply
  • self-contained using the fresh water tank and connected to sewage

Versatility at its best: four operating modes for one product

E-LINE offers a variety of solutions (single restroom, 2-restroom station, 2-restroom trailer), all of them based on the same core technology allowing four operating modes:

  • self-contained (using external fresh and gray water tanks)
  • self-contained using the fresh water tank and connected to sewage
  • self-contained using the gray water tank and connected to water supply
  • mains connected (both water and sewage system)

Operations are very easy and the same knowledge applies to all products. This is a big plus for you, but also for us, as we will further develop this line by creating more products with the same much appreciated technology.

Technical specifications

  • Height (external) 2.220 mm / 87.40”
  • Width (external) 1.150 mm / 45.27”
  • Length (external) 3.100 mm / 122.04”
  • Internal dimensions (HxWxL) per restroom 2.070x1.010x1.010 mm /81.49”x39.76”x39.76”
  • Step height 80 mm / 3.15”
  • Seat height 450 mm / 17.71”
  • Weight (empty) 500 kg / 1102.31 lb.
  • Fresh water capacity (self-contained use only) 500 L / 132.08 gal.
  • Gray water capacity (self-contained use only) 500 L / 132.08 gal.
  • Gray water return tank capacity 15 L / 3.96 gal.
  • Power supply (N. 2 batteries) 12V DC
  • Fresh water pump (No. 1 per restroom) from 10 L/min. – 2.64 gal./min.
  • Gray water discharge pump (No. 1 inside each cabin + No. 2 inside the technical room) from 18 L/min. – 4.75 gal./min.
  • Gray water discharge pump pipe diameter 38 mm / 1.50”
  • Water consumption per each flush 1 L / 0.26 gal. for the toilet bowl and 0,2 L/ 0.05 gal. for the hand wash sink

Material used

  • Structural profiles in extruded aluminium and insulated panels in fiberglass and polystyrene
  • Sanitary wares in ABS
  • Roof in fiberglass and polystyrene
  • OSB (Oriented Strand Board) base with wood-effect PVC floor

Features include

  • Two stations (with toilets and hand wash sinks) and one technical room
  • Two fresh and gray water tanks of 500 L/132.08 gal. capacity each located inside the technical room
  • A 15 L / 3.96 gal. return tank, including two pumps and two floats, to collect gray water and ensure it does not return to the toilet
  • Automatic pumps management
  • Solar panel
  • Push buttons to activate the toilet bowl flushing with fresh water and the hand wash sink
  • Moulded flushing rim around the top of the toilet bowl to allow fresh water to be directed over the entire surface so that it is completely flushed with water
  • External plugs for an easy connection to water supply and sewage system (the unit can be positioned at 10 m/393.70’’ from the network)
  • Level sensors and automatic stop when the maximum/minimum levels of the gray/fresh water in the respective tanks are reached (self-contained use only)
  • Natural light inside the units coming from a porthole on the roof that allows good aeration
  • LED light with integrated presence sensor that turns on automatically at dusk
  • Door with return spring and lock system with vacant/occupied indicator
  • Sanitary wares in ABS
  • OSB (Oriented Strand Board) wood panel floor
  • Paper hand towel dispenser in foils and soap and sanitizer dispenser
  • Toilet paper dispenser in foils and 8 L/2.11 gal. plastic dustbin
  • Mirror
  • Coat/tool-belt hook
  • Predisposition for No. 2x65Ah car batteries

Standard colors

  • Ash Grey
  • White

Accessories
