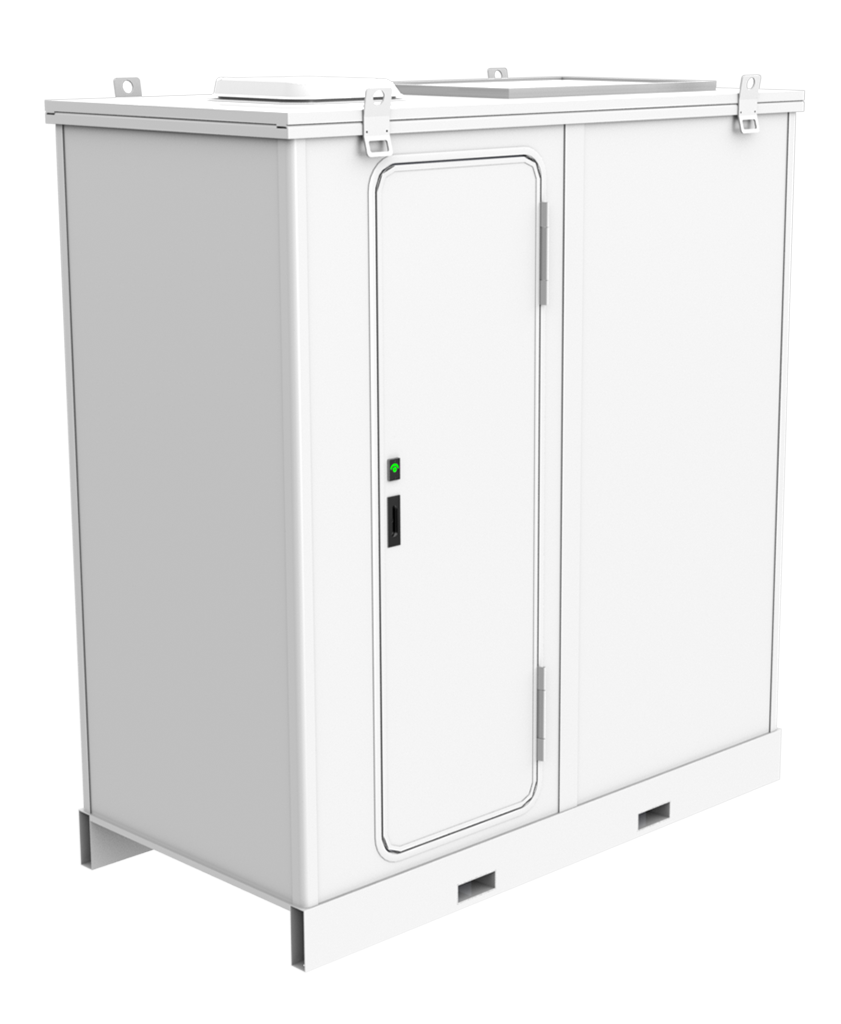

E-TOP PLUS Electronic Portable Restroom

E-TOP PLUS is the enhanced version of Armal’s E-TOP designed to deliver premium sanitation performance in demanding environments. Built to combine autonomy, durability and ease of use, the cabin offers a reliable sanitation solution wherever high standards of hygiene and comfort are required.

Technical specifications

  • Height (external) 2.420 mm / 95.28”
  • Width (external) 1.070 mm / 42.12”
  • Length (external) 2.120 mm / 83.46”
  • Cabin internal dimensions (HxWxL) 2.070x1.010x1.010 mm / 81.49”x39.76”x39.76”
  • Step height 240 mm / 9.45”
  • Seat height 450 mm / 17.71”
  • Weight (empty) 400 kg / 881.85 lb.
  • Fresh water tank capacity 500 L / 132.08 gal.
  • Grey water tank capacity 500 L / 132.08 gal.
  • Power supply 12V DC
  • Fresh water pump (No. 1) from 10 L/min. / 2.64 gal./min.
  • Grey water discharge pump (No. 1 inside the cabin + No. 1 in the technical room) from 18 L/min. / 4.76 gal./min.
  • Grey water discharge pump pipe diameter 38 mm / 1.50”
  • Water consumption per each flush 1 L / 0.26 gal. for the toilet bowl and 0.2 L / 0.05 gal. for the hand wash sink

Material used

  • Structural profiles in extruded aluminium and insulated panels in fiberglass and polystyrene
  • Sanitary wares in ABS
  • Roof in fiberglass and polystyrene
  • OSB (Oriented Strand Board) base with wood-effect PVC floor

Features include

  • One station with toilet bowl, hand wash sink, featuring push buttons to flush the bowl with fresh water and activate the sink, plus a separate technical room
  • Two fresh and gray water tanks of 500 L/132.08 gal. capacity, each located inside the technical room
  • Automatic pumps management
  • Solar panel centrally placed on the roof of the technical room
  • Electronics powered by a 12V battery, charged via a solar panel mounted on the cabin roof
  • Push buttons to activate the toilet bowl flushing with fresh water and the hand wash sink
  • Moulded flushing rim around the top of the toilet bowl to allow fresh water to be directed over the entire surface so that it is completely flushed with water
  • External plugs for an easy connection to water supply and sewage system (the unit can be positioned at 10 m/393.70’’ from the network)
  • Level sensors and automatic stop when the maximum/minimum levels of the gray/fresh water in the respective tanks are reached (self-contained use only)
  • LED light with integrated presence sensor that turns on automatically at dusk
  • Natural light and additional airflow are provided by a roof porthole, enhancing interior comfort and ventilation
  • Door with return spring and lock system with vacant/occupied indicator
  • Sanitary wares in ABS
  • OSB (Oriented Strand Board) base with wood-effect PVC floor
  • Paper hand towel dispenser in foils and soap and sanitizer dispenser
  • Toilet paper dispenser in foils and 8 L/2.11 gal. plastic dustbin
  • Wall urinal
  • Mirror
  • Coat/tool-belt hook
  • Predisposition for No. 1x65Ah car battery

Standard colors

  • White
  • Grey

Downloads

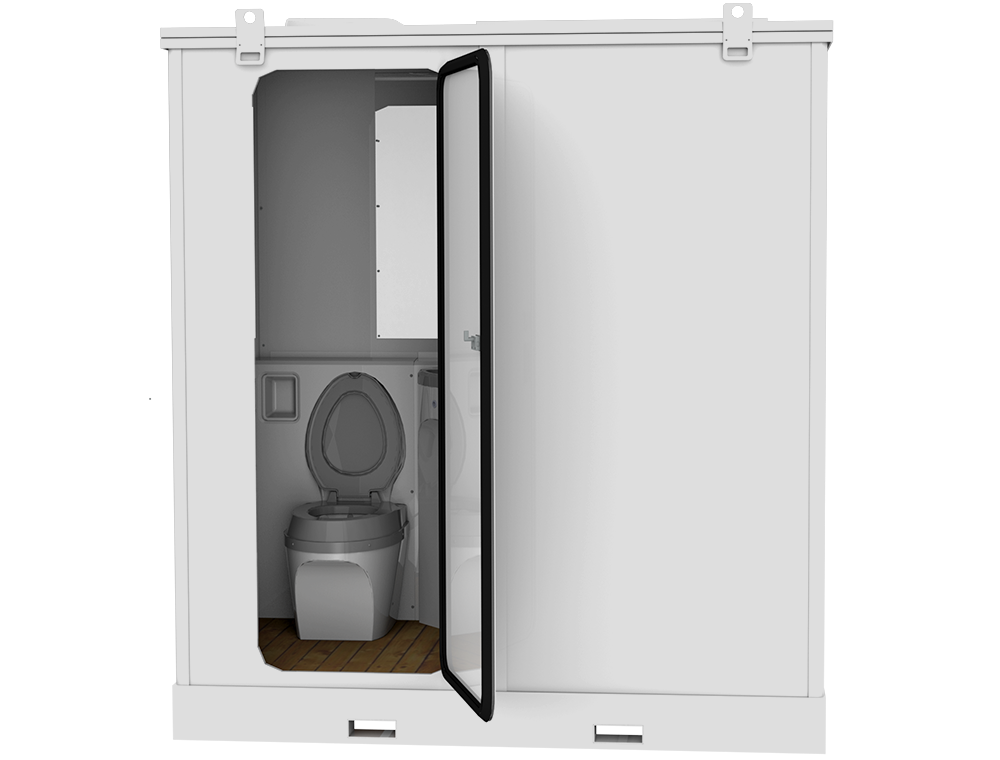

This image is for illustrative purposes. Colours and finishes of the WC bowl, cover, seat and lid may vary.

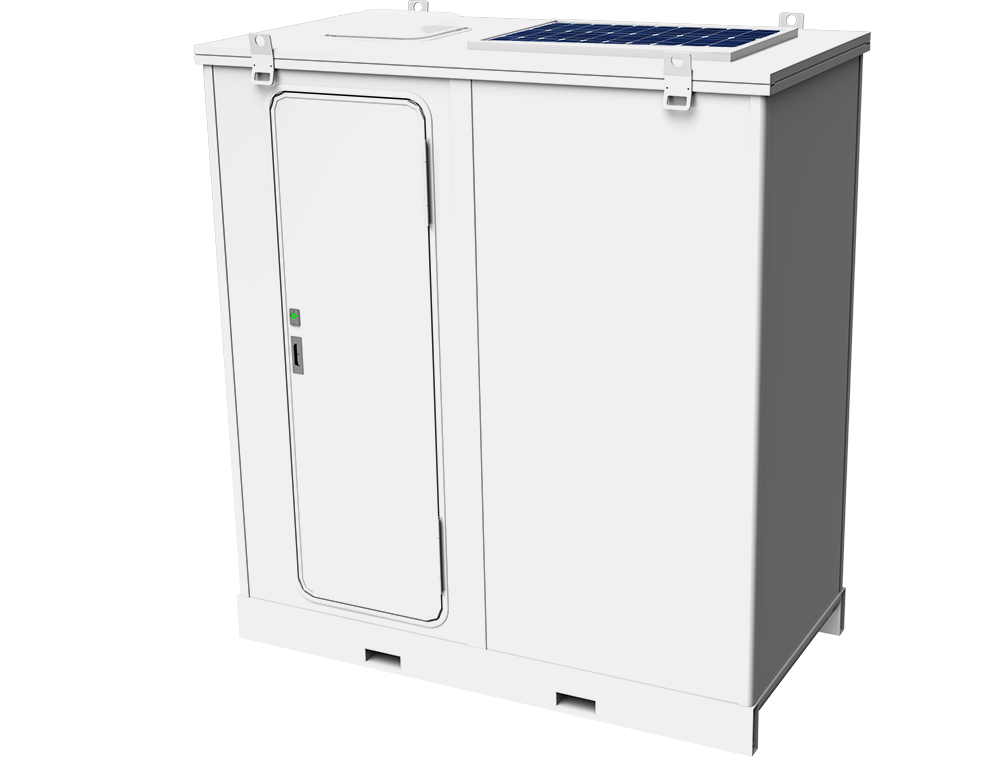

AN ELECTRONIC PORTABLE RESTROOM WITH INTEGRATED TECHNICAL ROOM

E-TOP PLUS features a dedicated technical room that houses and protects all electronic components. This integrated compartment ensures simplified maintenance and secure operation while keeping the user area clean and organized. The design allows the system to operate efficiently even in environments where durability and reliability are essential.

STAND-ALONE SANITATION SYSTEM FOR REMOTE LOCATIONS

Designed for maximum autonomy, E-TOP PLUS works as a fully stand-alone unit. The cabin is equipped with separate fresh and grey water tanks, eliminating the need for direct connection to water supply or sewer systems. This configuration makes it particularly suitable for construction sites, remote areas and temporary sanitation installations.

COMFORT AND FUNCTIONALITY INSPIRED BY E-TOP

While introducing additional technical features, E-TOP PLUS preserves the comfort and user experience that define the original E-TOP model. The cabin offers a practical and comfortable environment designed for individual use, combining reliable technology with the functional design that characterizes Armal’s electronic portable restroom line.
